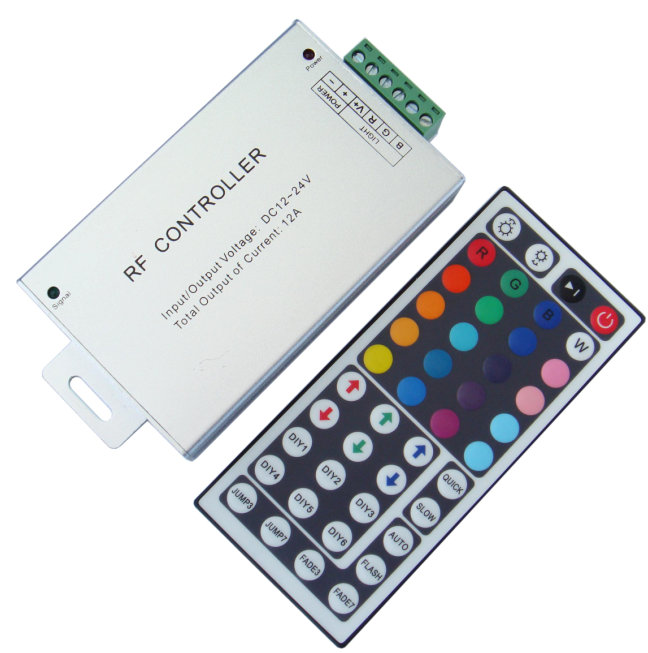

Product name : 44-key Aluminum Infrared Controller
Item : ID-IR04C
Voltage : 12-24V DC
Power : 12V:<144W, 24V:<288W
Colors : RGB
leadtime : 7-10days
Warranty : 2years
 Enlarge Image                   Back
←[Previous Product]



Product Description

44-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust any light color as they like. You can also customize the desired color with DIY keys.

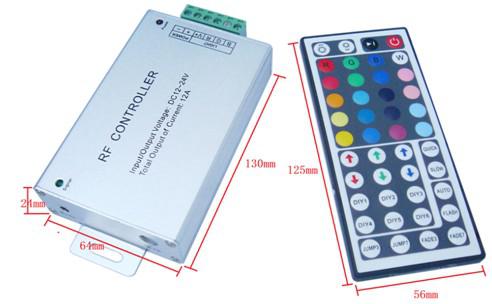

External Dimension   (Controller and Remote control)

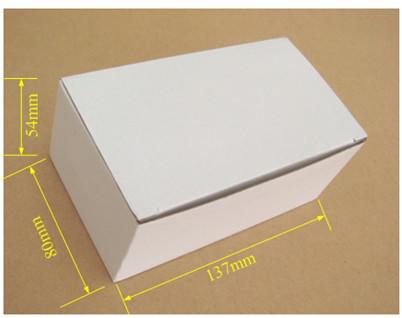

(Packing size)

Technical Parameters

Working temperature


Supply voltage

DC5V, 12V~24V optional (specify the required voltage on orders)


3 channels

Connecting mode

common anode/cathode optional (specify the required voltage on orders)

External dimension

L130*W64*H24 mm

Packing size


Net weight


Gross weight


Static power consumption


Output current

<4A(each channel)

Output power

5V:<60W,  12V:<144W,  24V:<288W

Interface Specifications

Power input interface (port1):  Adopt conventional power transposon as a DC power input interface.

Power input interface (port2):  Adopt male and female connector with screw.

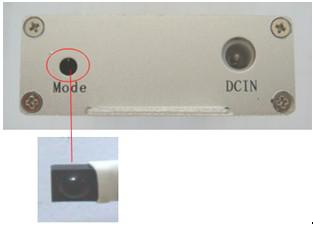

Infrared receiver interface:  Adopt built-in infrared receiver.

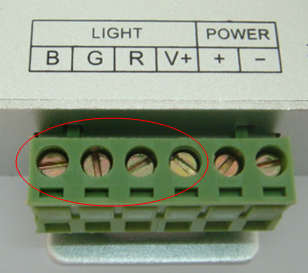

Load output interface:  Adopt male and female connector with screw.


Direction for use

1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

The key-press functions are shown in the table as below (in accordance with the key position order):

Brightness rise

Brightness fall



Static red

Static green

Static blue

Static white

Static orange

Static light green

Static dark blue

Static  milk white

Static dark yellow

Static cyan

Static lyons blue

Static white pink

Static yellow

Static light blue

Static purple

Static green-white

Static light yellow

Static sky blue

Static brown

Static blue white

Increase red

Increase green

Increase blue

Speed up

Decrease red

Decrease green



DIY key1

DIY key2

DIY key3


DIY key4

DIY key5

DIY key6

Flash on and off

3 color jumpy change

7 color jumpy change

3 color fade change

7 color fade change


1. About DIY key, when it’s pressed first time, will enter the DIY color mode, you can adjust the color per the 6 keys at above to increase or decrease the R/G/B color by yourself freely(if other key is pressed this time,will jump out from DIY color mode). And you can save the color which you have adjusted by pressing the DIY key once again. When next time this key is pressed, it will show the color you saved last time.

2. There are 6 DIY keys, so you can save 6 colors you like. They are all Independent, have no effect each other. For example: if you press DIY key1 first, and then press DIY key2, DIY key1 will be invalid, until DIY key2 is pressed once again, current color will be saved.

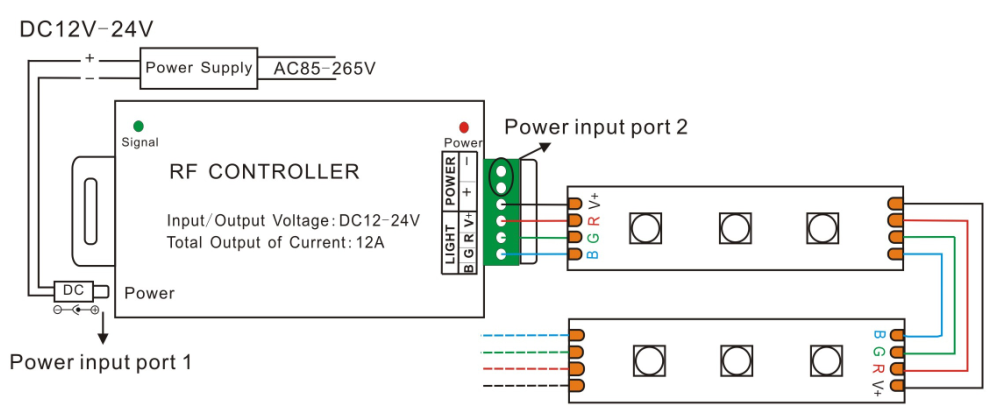

Typical Applications    Application Circuit:



1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
5. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.
