Products > LED Lamp > > 600*600 LED Panel Light
Product name : 600*600 LED Panel Light
Item : ID-PA6060W
Voltage :
Power :
Colors :
leadtime :
Warranty :
 Enlarge Image                   Back
←[Previous Product]


Details:

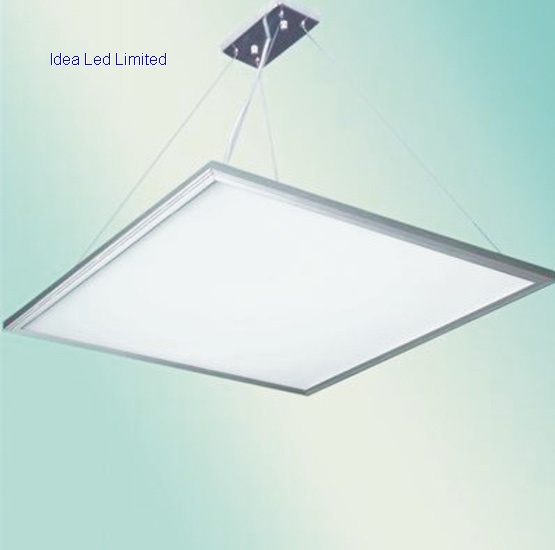

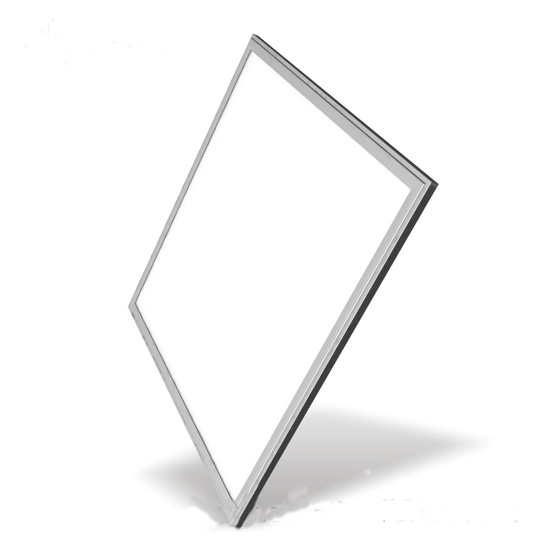

LED Panel Lights (600*600mm)


Specification:

Power:36W/40W/48W
Input Voltage:AC90-240V
Dimension:595*595*13.5mm
Color temperature:3000k/4500k/6000k
CRI>80




Type No.

Actual Size

LED Qty

Watt

LED Type

Lumen

ID-PA6060WA

595*595*13mm

200pcs

40W

SMD 2835

3200lm±10%

ID-PA6060WB

595*595*13mm

240pcs

48W

SMD 2835

4080lm±10%









Electrical Parameters:

Input Voltage90-240Vac

Frequency50/60Hz

Optical Parameters

Luminaire Efficiency:>90%

LED Efficiency:>85Lm/w

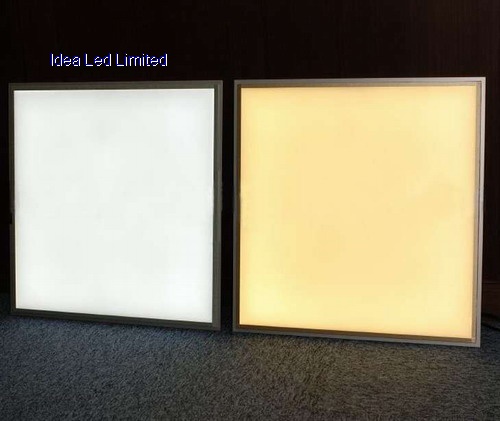

Color Temperature: Pure white, Warm white, Amber white.

Other Parameters

Product PatentsYes

Operating Temperature-20---50

Storage Temperature-20---50

AppearanceFrosted

Main MaterialAluminum Alloy + Optical PMNA

IP RatingIP40

Life Span50,000 hours

Net weight: 4.2KG

Gross weight: 5.56KG

Lux Report:

40W Pure white

1m: 580 Lux (±10)

2m: 200 Lux (±10)

3m: 115 Lux (±10)



40W Warm white

1m: 540 Lux (±10)

2m: 170 Lux (±10)

3m: 105 Lux (±10)
