IDEA LED LIMITED

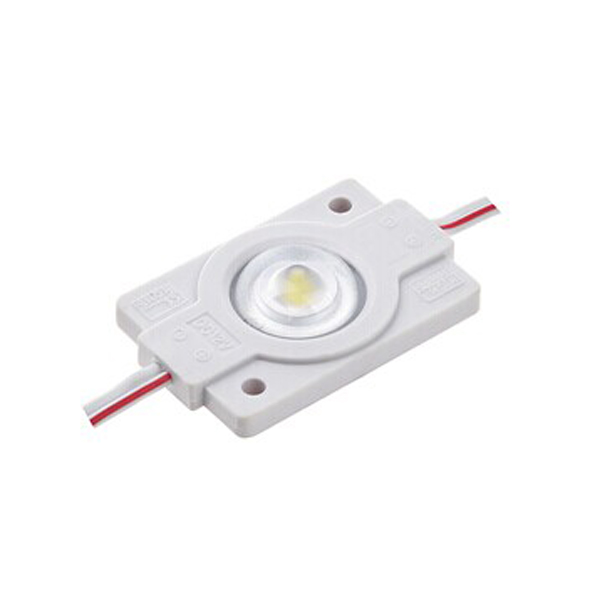

1.5W High Power LED module

Power:1.5W
Voltage:DC 12V
LED Chip:5050 LED
Luminous:120lm/pc
IP rank:IP65
Color:Cool White(9000K)
Dimension:40*33*6.5mm
Wire length between two module:125mm
Net weight:12.1g

Features
1. High luminous efficacy with 5050SMD LED mounted;
2. High-pressure injection technology;
3. Maximum module quantity per string up to 20pcs;
4. Long life, excellent heat dissipation with PVC housing and aluminum PCB.
5. Constant current technology;
6. Certification: CE, RoHS,

Installation
1. Adhesive tape backing on modules used as an installation aid only, permanent adhesion is done with screws;
2. Single module as a unit can be cut.

Warranty
3 years or 13,000 hours, whichever come first.

Application
Suitable for 15-25cm(5.91-9.84in) depth single-side light box in airport,metro and bus stations,shopping mall etc
